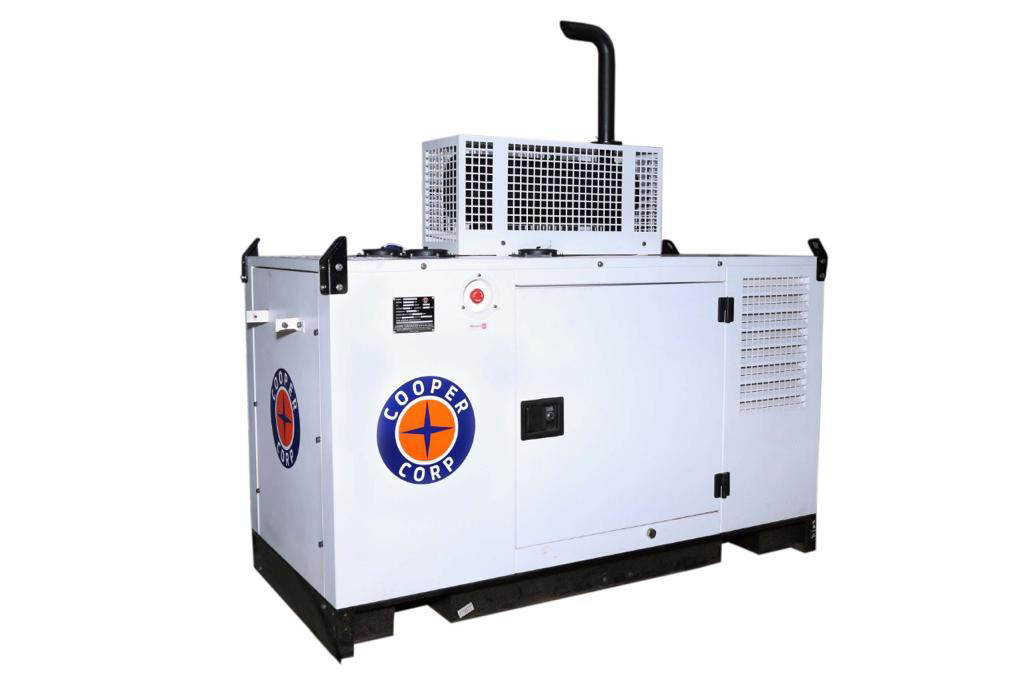

10 KVA Cooper Generator

Clear

Inquiry Now
Genset Technical Specification
Genset Rating ( kVA )10
Power Rating ( kW )8
Current ( Amps )43.5/13.9
Phase1/3
Power Factor0.8
Canopy Dimension (LxWxH )1777X826X1398
Cooper Engine SpecificationsCooper
Engine Model2A1D1C10.3CW
Rated Power in kW (hp)10.3(14)
AspirationNA
Cooling SystemsLiquid Cooled
Starting Systems12 Volt Electrical
No of Cylinders2
Bore X Stroke ( mm )87X100
Engine Speed ( rpm )1500
Fuel Tank Capacity ( Liters )75
Lube Oil Specifications15W40CI4+
Genset Dry Weight ( kgs)670
Alternator Specifications
TypeBrushless
Voltage230/415
Speed / Frequency1500RPM/50HZ
Voltage Regulation+/-1%
EnclosureIP23
Class of InsulationClass H
Generator Model Also Available in 1800 RPM / 60 Hz
Frequency

50 hz, 60 hz

Open and Closed Type

,

Phase

,

SKU: CDG10 Category: Tags: ,
