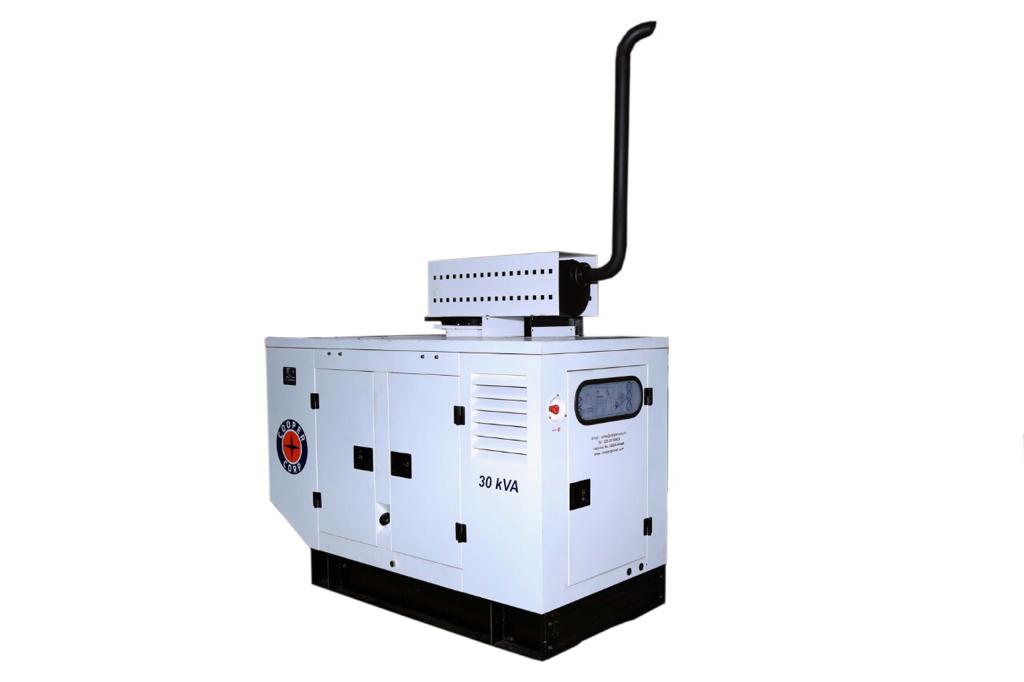

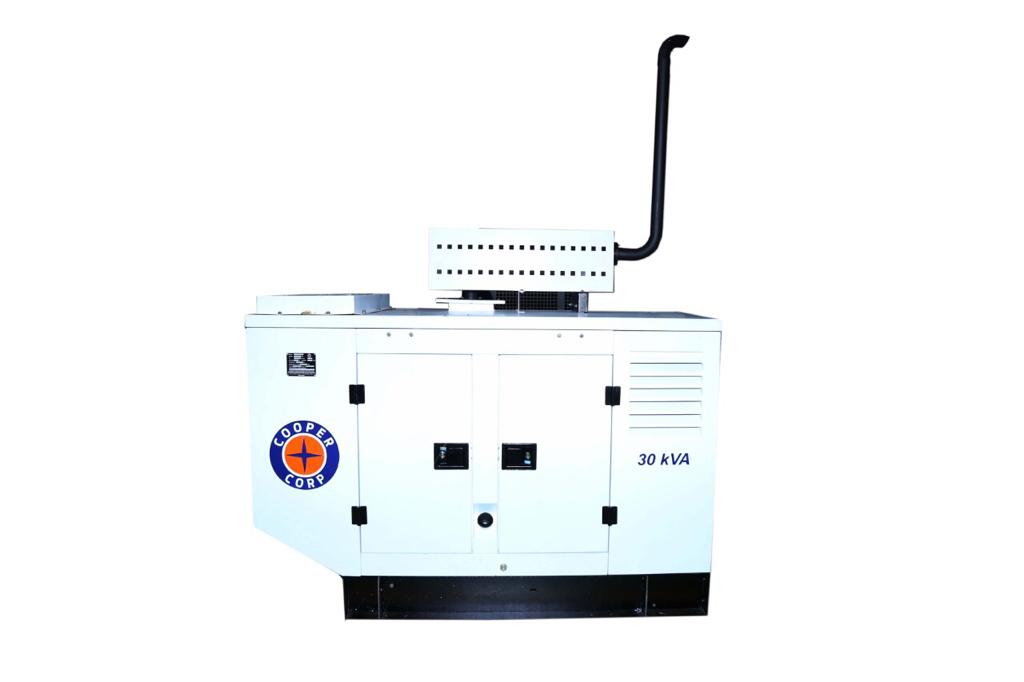

30 KVA Cooper Generator

Clear

Inquiry Now
Genset Technical Specification
Genset Rating ( kVA )30
Power Rating ( kW )24
Current ( Amps )130.4/41.7
Phase1/3
Power Factor0.8
Canopy Dimension (LxWxH )1950X950X1684
Cooper Engine SpecificationsCooper
Engine Model2A5D1A31.4CW
Rated Power in kW (hp)31.4(42.7)
AspirationTCIC
Cooling SystemsLiquid Cooled
Starting Systems16 Volt Electrical
No of Cylinders2
Bore X Stroke ( mm )87X100
Engine Speed ( rpm )3000
Fuel Tank Capacity ( Liters )75
Lube Oil Specifications15W40CI4+
Genset Dry Weight ( kgs)770
Alternator Specifications
TypeBrushless
Voltage230/415
Speed / Frequency3000RPM/50HZ
Voltage Regulation+/-1%
EnclosureIP23
Class of InsulationClass H
Generator Model Also Available in 1800 RPM / 60 Hz
Frequency

50 hz, 60 hz

Open and Closed Type

,

Phase

,

SKU: CDG30 Category: Tags: ,
