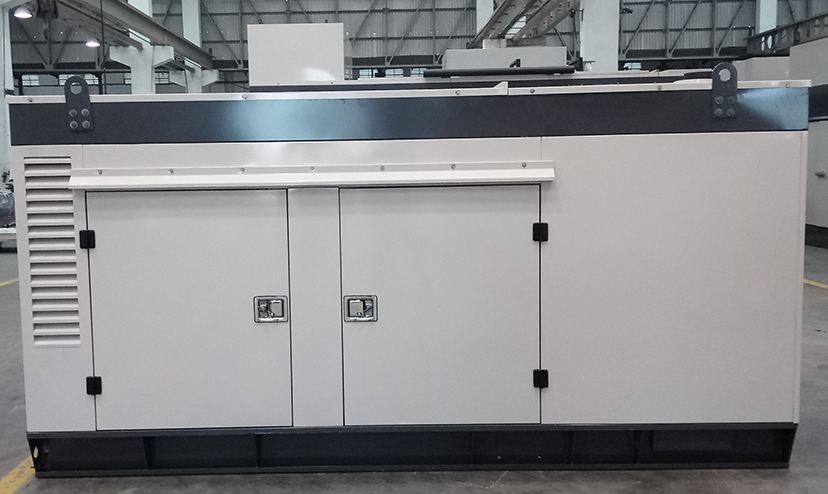

400 KVA Perkins Generator


Inquiry Now
• Generator set specification
Prime Rating (50 Hz/1500 RPM)400 KVA
• Engine Specification
Engine Rated Output KW ( 1500/1800 RPM)1500
Cooling typeWater
Type of AspirationTurbocharged
No. of cylinders6
Bore (mm) x Stroke (mm)130 X 157
Starting system24 VDC
• Alternator Specification
MakeLS/ Stamford
EnclosureIP 23
Voltage regulation (Max.)± 5 %
Class of InsulationH
Genset Dimensions ( Length x Width x Height) in mm5550 X 2000 X 2790
Wet Weight in KG5400
Standard Fuel Tank Capacity ( in Ltr)450
Note :
1. Enclosure type , Open type & Container type available
2. Product details mentioned may change without any notice due to continuous improvement in product
3. Detailed techno-commercial offer will be submitted upon inquiry received from client.
4. Products are Assembled in India, Engine Origin are India and UK ( for mid range generators)
5. Standard Scope – Engine , Alternator, Base frame, Control panel ( Breaker panel till 500 KVA in Standard scope),Silencer, Battery & Battery leads, fuel tank ( In built & stand alone)
6. Specific scope of supply can be worked out based on clients request.

50 hz, 60 hz

Open and Closed Type
