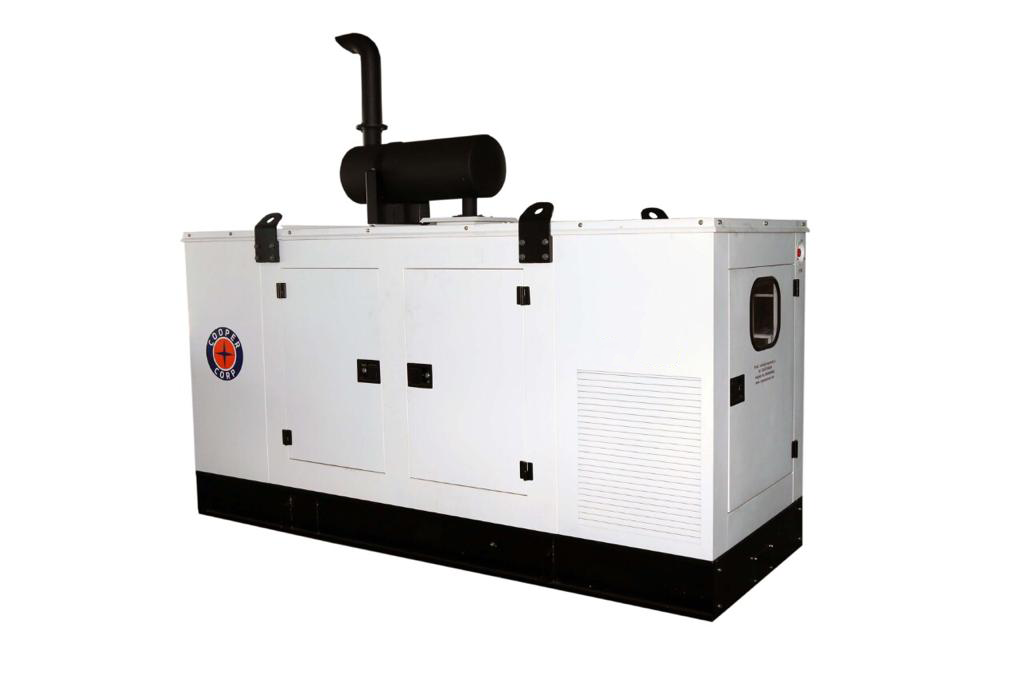

| Genset Technical Specification |
| Genset Rating ( kVA ) |
50 |
| Power Rating ( kW ) |
40 |
| Current ( Amps ) |
69.5 |
| Phase |
3 |
| Power Factor |
0.8 |
| Canopy Dimension (LxWxH ) |
3050X1100X1604 |
| Cooper Engine Specifications |
Cooper |
| Engine Model |
3B5D1C62IW |
| Rated Power in kW (hp) |
62(85) |
| Aspiration |
TCIC |
| Cooling Systems |
Liquid Cooled |
| Starting Systems |
18 Volt Electrical |
| No of Cylinders |
3 |
| Bore X Stroke ( mm ) |
107 x 126 |
| Engine Speed ( rpm ) |
1500 |
| Fuel Tank Capacity ( Liters ) |
200 |
| Lube Oil Specifications |
15W40CI4+ |
| Genset Dry Weight ( kgs) |
1700 |
| Alternator Specifications |
|
| Type |
Brushless |
| Voltage |
415 |
| Speed / Frequency |
1500RPM/50HZ |
| Voltage Regulation |
+/-1% |
| Enclosure |
IP23 |
| Class of Insulation |
Class H |
| Generator Model Also Available in 1800 RPM / 60 Hz |
