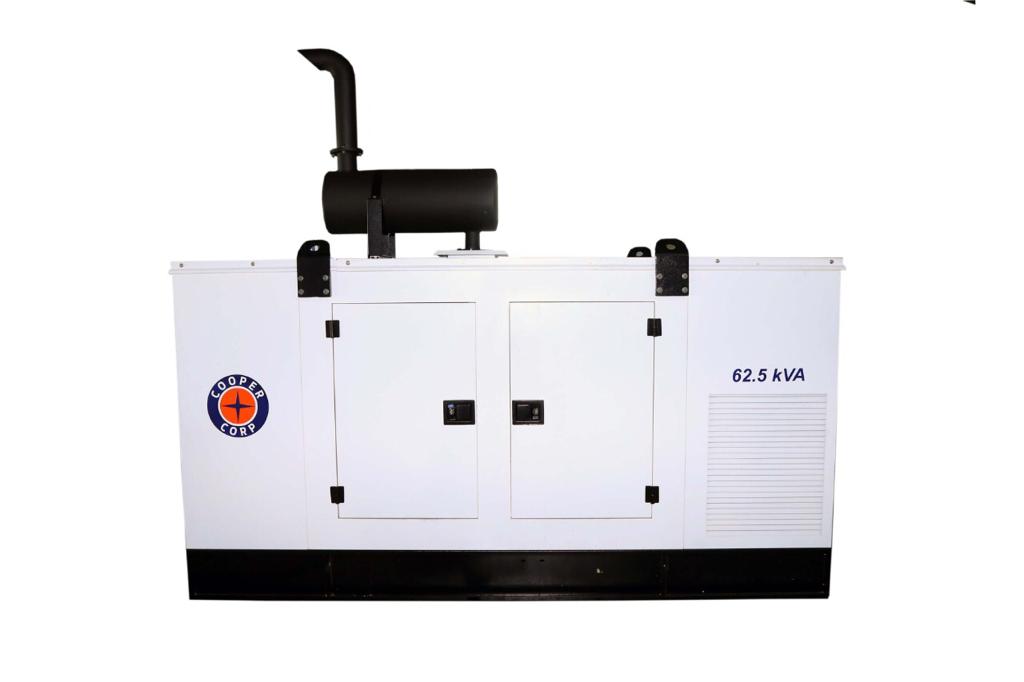

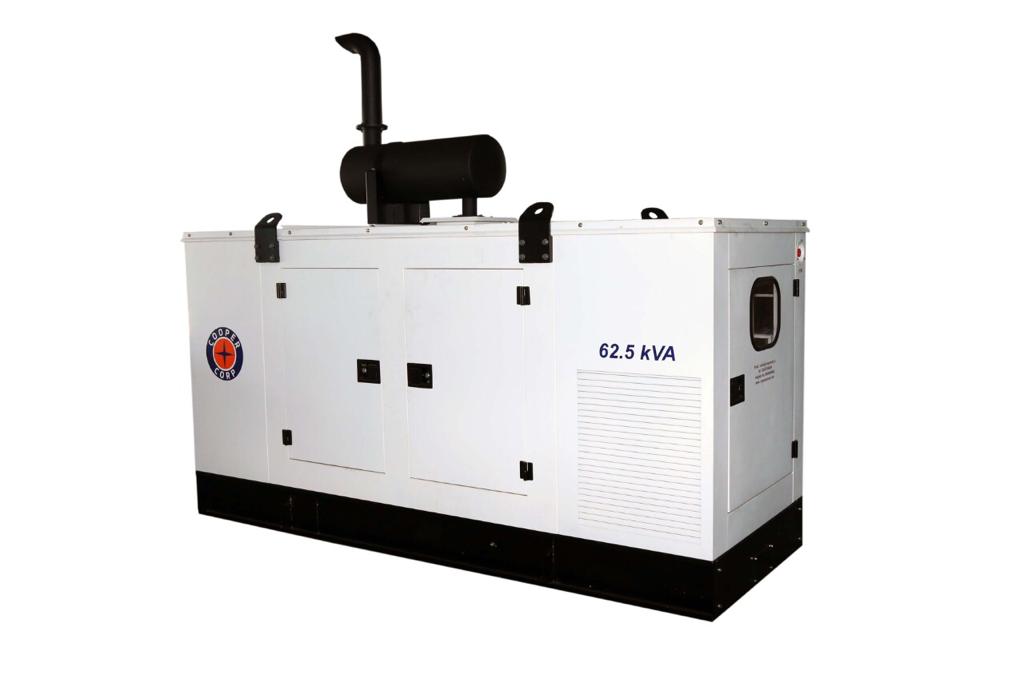

62.5 KVA Cooper Generator

Clear

Inquiry Now
Genset Technical Specification
Genset Rating ( kVA )62.5
Power Rating ( kW )50
Current ( Amps )86.87
Phase3
Power Factor0.8
Canopy Dimension (LxWxH )3050X1100X1605
Cooper Engine SpecificationsCooper
Engine Model3B5D1C62IW
Rated Power in kW (hp)62(85)
AspirationTCIC
Cooling SystemsLiquid Cooled
Starting Systems19 Volt Electrical
No of Cylinders3
Bore X Stroke ( mm )107 x 126
Engine Speed ( rpm )1500
Fuel Tank Capacity ( Liters )200
Lube Oil Specifications15W40CI4+
Genset Dry Weight ( kgs)1750
Alternator Specifications
TypeBrushless
Voltage415
Speed / Frequency1500RPM/50HZ
Voltage Regulation+/-1%
EnclosureIP23
Class of InsulationClass H
Generator Model Also Available in 1800 RPM / 60 Hz
Frequency

50 hz, 60 hz

Open and Closed Type

,

SKU: CDG62.5 Category: Tags: ,
