Sale

82.5 KVA Cummins Generator

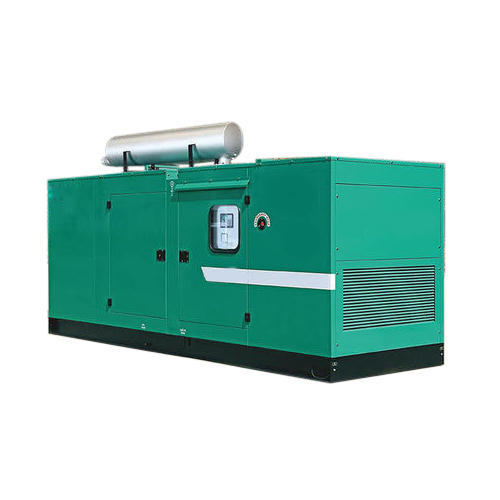

  • 82.5 KVA Prime ( Closed type) Cummins Diesel Generating set closed coupled with Stamford Alternator with standard accessories.

Inquiry Now
• Generator set specification 82.5 KVA
Model C82.5D5P
Duty Prime
Power Rating kVA / kWe 82.5 /66 .
No of Phases 3
Output Voltage (V) 415
Power Factor (ɸ) 0.8 ( Lagging)
Frequency (Hz) and RPM 50 Hz, 1500 RPM
• Engine Specification
Make Cummins
Model 4BTAA3.9-G4
MoEF Certified Power (bhp) 99
Cooling type Liquied Cooled
Type of Aspiration TurboCharged , Charged Aircooled
No. of cylinders   4 -Inline
Bore (mm) x Stroke (mm) 102 X 120
Starting system 12V DC Electrical
Lube oil specification CI4+ 15W40
• Alternator Specification
Make Stamford (CGT)
Alternator frame UCI224G
Enclosure IP23
Voltage regulation (Max.) ± 1 %
Class of Insulation H Class
Enclosed Genset Dimensions ( Length x Width x Height) in mm 3850 X 1150 X 1700
Wet Weight in KG 1915
Standard Fuel Tank Capacity ( in Ltr) 145
  • Supplied with all Standard Accessories  i.e. Genset Controller, Battery & leads, Anti-Vibration pads, Safety Switches for LLOP, HWT etc. ( For More information please refer Brochure attached).
Weight 1915 kg
Dimensions 385 × 115 × 170 cm
Open and Closed Type

Phase

SKU: ET82.5DGEN3 Category: Tags: ,
