82.5 kva Mahindra Generator

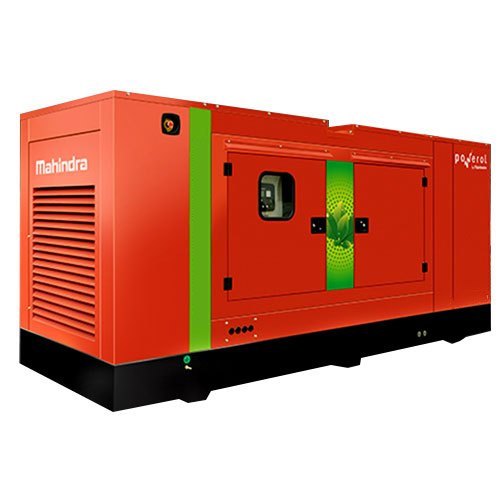

82.5 KVA Prime (Closed type) Mahindra Diesel Generating set closed coupled with Stamford Alternator with standard accessories.


Inquiry Now
Duty (Standby/ Prime)Prime
50 HZ PRIMERating(kVA)82.5 kVA
Rated(kWe)66
Engine ModelmPower41015G
No of Cylinders4
Phase / Voltage (V)3 / 415
Power Factor0.8 (lagging)
Current (A)115
Governing classG2 as per ISO 8528 Part V
Starting system12 V DC Elec
Fuel tank capacity200
Canopy dimensions w/o silencer (mm) (L x W x H) approx.3200 x 1200 x 1600
Genset Weight (kg) approx.1700
Rated Speed RPM1500
Engine Specification
Make / SeriesMahindra mPower
Rated Power at 100% Load @ 1500 RPM (HP)101
AspirationTurbocharged Aftercooled
Bore x Stroke (mm)105 x 137
Displacement (Lit)4.8
Fuel consumption @ 75% load (lit/hr) ^13.9
Fuel consumption @ 100% load (lit/hr) ^18.1
Lube oil specification15W40 API CI4+
Total lubrication system capacity (lit)13.5
Lube oil consumption @ 100% load ($)0.1% of Fuel Consumption
Lube oil change period (hrs.)500
Radiator coolant capacity (liter)19
Rated Current(AMP) Capacity @ 0.8PF1 PhaseNA
3 Phase115
DimensionLength3200
Width1300
Height2290
Intergrated Fuel Tank Capacity (lits)200
Approximate Weight of DG set (Kg)1700
Alternator
Enclosure TypeIP23
Voltage regulation±1%
Class of insulationClass H
Maximum Unbalanced Load across Phases25%
  • Supplied with all Standard Accessories  i.e. Genset Controller, Battery & leads, Anti-Vibration pads, Safety Switches for LLOP, HWT etc. ( For More information please refer Brochure attached).
Weight1700 kg
Dimensions320 × 130 × 229 cm
Open and Closed Type

Phase

SKU: ET82.5MGEN3 Category: Tags: ,
