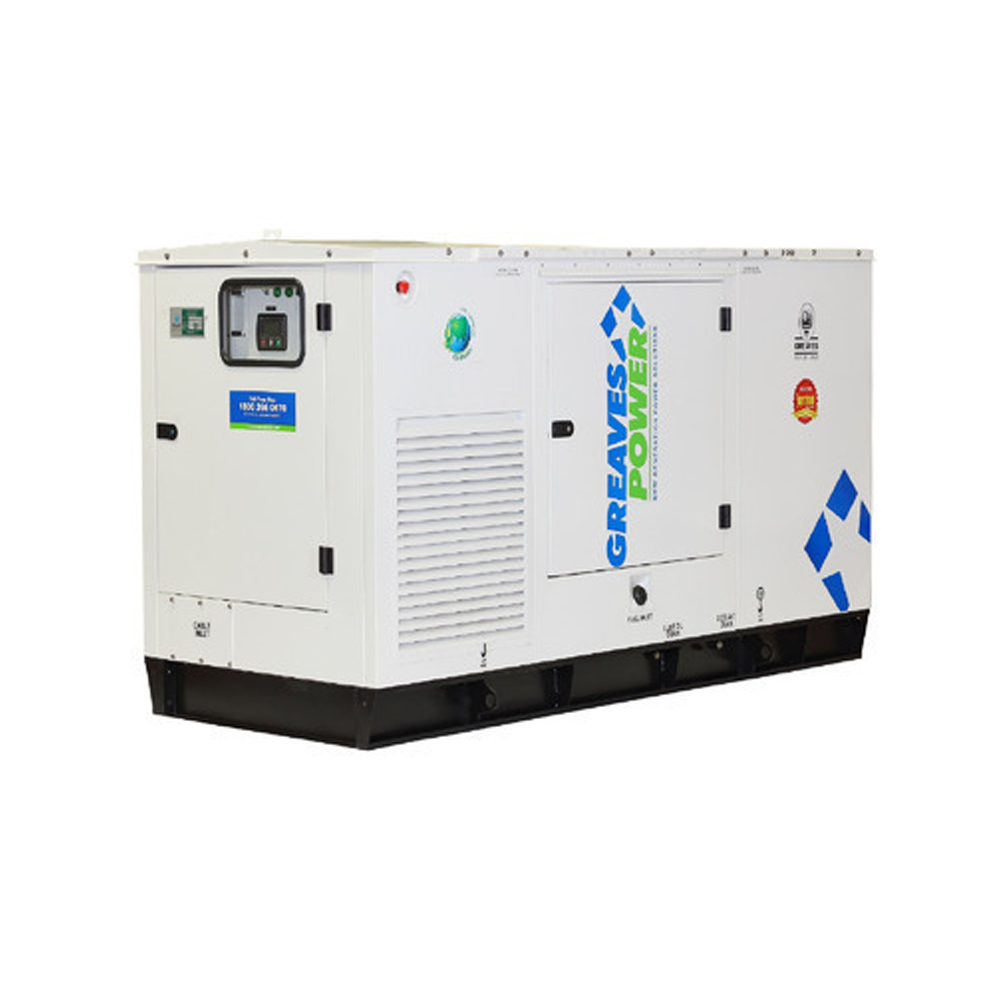

10 KVA Greaves Power Generator

  • 10 KVA Prime (Single Phase / Three Phase) (Closed type) Greaves Diesel Generating set closed coupled with Stamford Alternator with standard accessories.
Clear

Inquiry Now
• Generator set specification 10 KVA
Model GPWII-PII-10E
Duty Prime
Power Rating kVA / kWe 10 / 8.
No of Phases 1P / 3P
Output Voltage (V) 230 / 415.
Power Factor (ɸ) 1 / 0.8
Frequency (Hz) and RPM 50, 1500
• Engine Specification
Make ESCORTS
Model G12-II
MoEF Certified Power (KW) 13.2
Cooling type Water Cooled
Type of Aspiration Naturally Aspirated
No. of cylinders 2 , Inline
Bore (mm) x Stroke (mm) 91 x 110
Starting system 12 V DC
Lube oil specification API CI4, 15W40
• Alternator Specification
Make CG, Stamford
Type 2P, Rotating Field
Current ( Amps) 43.47 / 13.91
Voltage regulation (Max.) ± 1 %
Class of Insulation H
Enclosed Genset Dimensions ( Length x Width x Height) in mm 1912 x 930 x 1242
Wet Weight in KG 595
Standard Fuel Tank Capacity ( in Ltr) 40
  • Supplied with all Standard Accessories  i.e. Genset Controller, Battery & leads, Anti-Vibration pads, Safety Switches for LLOP, HWT etc. ( For More information please refer Brochure attached).
Weight 595 kg
Dimensions 191 × 93 × 124 cm
Open and Closed Type

Phase

,
